Hardware

Axicon 6525-S - Aperture automatically switchable between aperture reference numbers 05, 06, 10 and 20.  Scan width 125 mm. Wavelength of light is 660 nm.

Axicon 7025-S - Aperture automatically switchable between aperture reference numbers 08, 10 and 20.  Scan width 195 mm. Wavelength of light is 660 nm.

Printer interaction: Capable of pausing certain Zebra, Sato and TEC printer models with optional pause interface.

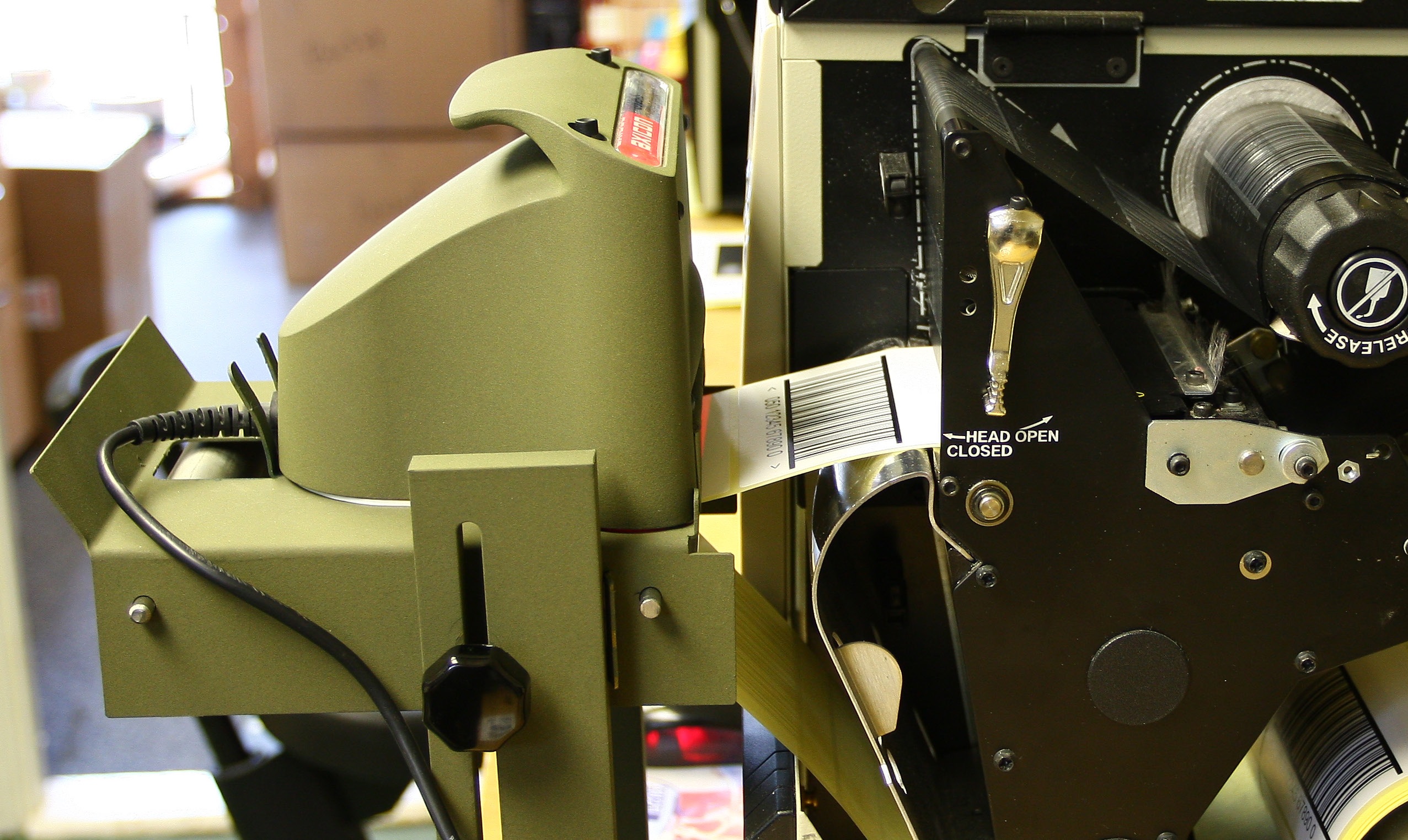

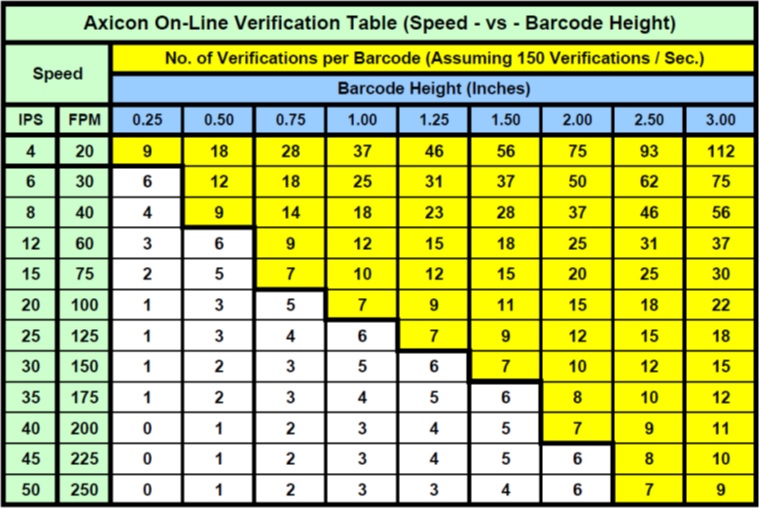

Mounting: A range of mounting options is available. Scan rate: 150 scans/second. Analysis rate: 100 per seconds or more dependent on PC.

Connectivity

USB2 connection to PC.

System Requirements

PC running any currently supported version of Microsoft Windows.

The verification system is supplied as the read-head (hardware), a CD with the Axicon verifier software (in several languages), a data cable, a quick start guide, a calibration card, and compliance certificates in a protective carry case.

Software Installation

To install the In-line software you will need to download the Axicon PC verifier for linear barcodes from our downloads page. Follow the on-screen instructions until you see the ‘select components to install’ screen (see right).  You will then need to tick the ‘online verifier’ box and press next. Follow the on screen instructions to finish installation and this will install the linear and In-line verifier software.
